Meet the OLED Display — Hello World

By the end of this mission, you will be able to:

• Explain what an OLED display is and how it communicates over I2C

• Describe the role of the Adafruit_GFX and Adafruit_SSD1306 libraries

• Wire an SSD1306 OLED display to the ESP32 correctly

• Display text on the screen using code

Every gadget with a screen — smartwatches, game consoles, thermostats — needs a display to show information. In this lesson, you'll add your own screen to your ESP32 projects.

Robo says: “Up until now, your projects have talked to you through the Serial Monitor. Today, they get their own screen.”

The SSD1306 is a small 0.96" screen made of OLED (Organic Light Emitting Diode) pixels that light up individually — meaning there's no backlight, and “off” pixels are truly black, giving deep contrast. It's a 128×64 pixel monochrome (single-color) display.

Just like the VL53L0X distance sensor, the OLED communicates over I2C, using the same SDA/SCL wiring pattern. This means multiple I2C devices (like this display and a distance sensor) can often share the same two wires.

Adafruit_GFX provides the drawing tools (text, shapes, lines) while Adafruit_SSD1306 handles talking to this specific screen over I2C. Together they let you control every pixel with simple function calls instead of raw hardware commands.

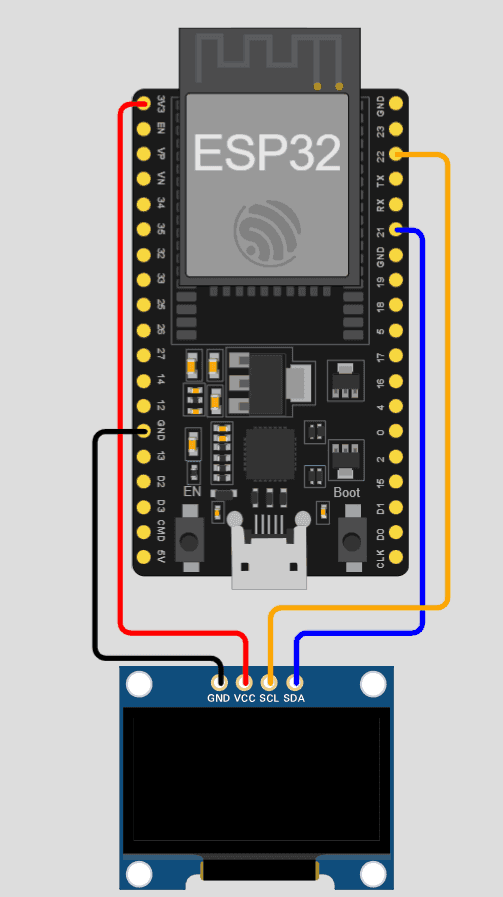

This lesson's circuit connects the OLED display like this:

• VCC → 3.3V

• GND → GND

• SDA → GPIO 21

• SCL → GPIO 22

Display “Hello World” on the screen.

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Wire.begin(21, 22);
if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
while (1);
}
display.clearDisplay();
display.setTextSize(2);
display.setTextColor(WHITE);
display.setCursor(0, 10);
display.println("Hello!");
display.display();
}
void loop() {}

🔧 Try It Yourself

Try changing the code, then write down what you changed:

Example: Changed “Hello!” to my own name, and it appeared on the screen instead.

• Change the displayed text to your own message

• Change setTextSize(2) to a different number

🤔 Discuss With a Partner or Write Your Answer

Why do you think display.display() is a separate command from all the display.print()/setCursor() lines above it? What might happen if you left it out?

1. OLED stands for ________ Light Emitting Diode.

2. The OLED display communicates with the ESP32 using ________ communication, the same as some sensors you've used before.

3. The ________ library provides drawing tools like text and shapes, while Adafruit_SSD1306 talks to this specific screen.

4. The command ________() must be called to actually push your changes onto the physical screen.

Draw a line (or write the matching letter in the blank) to connect each word to its meaning.

• I can explain what an OLED display is and how it communicates over I2C

• I can describe the role of the Adafruit_GFX and Adafruit_SSD1306 libraries

• I can wire an SSD1306 OLED display to the ESP32 correctly

• I can display text on the screen using code

Question 1: What does OLED stand for?

🔍 Reveal answer (drag-select the blank space): B

Question 2: What communication protocol does the SSD1306 use?

🔍 Reveal answer (drag-select the blank space): B

Question 3: What does display.display() do?

🔍 Reveal answer (drag-select the blank space): B

🏆 Level Up

Can you make the screen display two lines of text, each a different size?

Name one real device with a small screen like this one, and describe what kind of information it shows.

🤖 Robo Says

Your project just got its first screen! Next up: Lesson 2 — you'll turn it into a live sensor dashboard.
